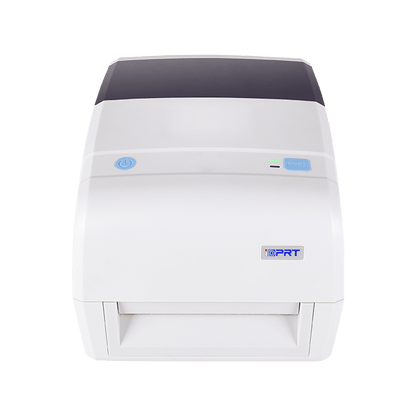

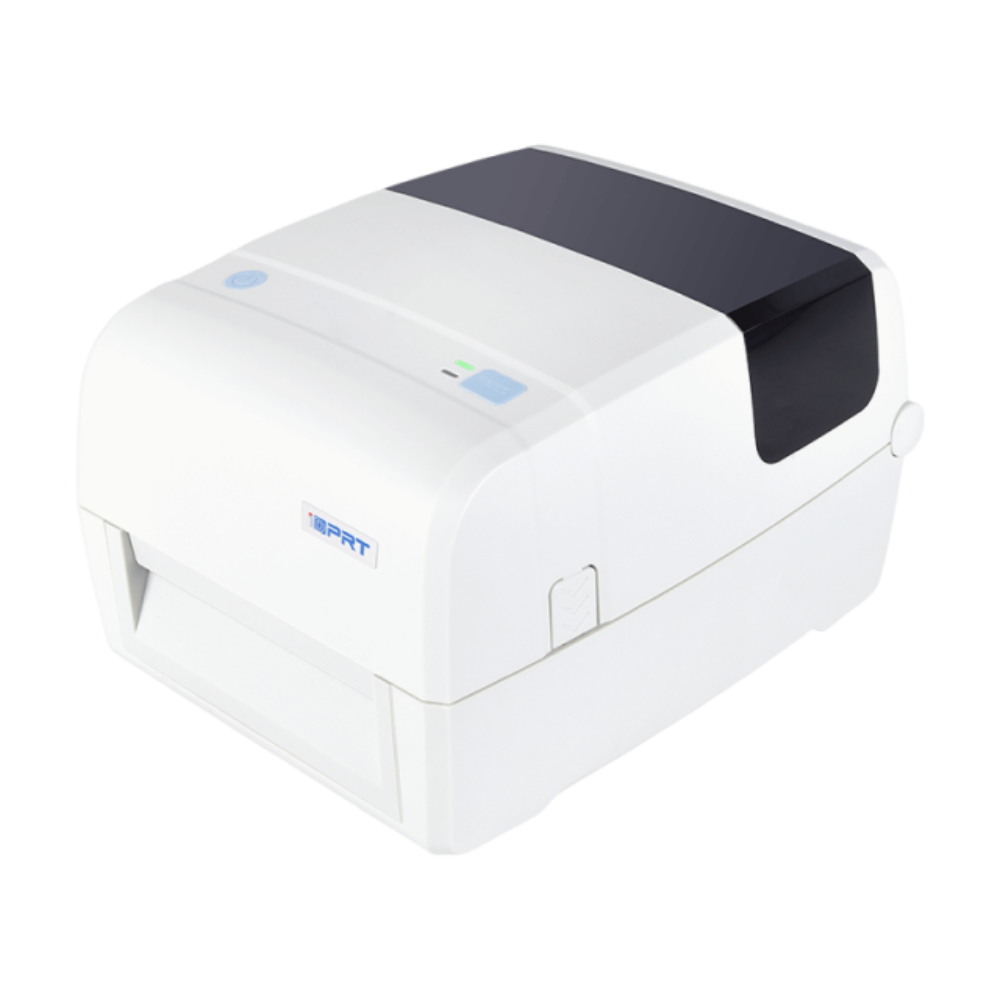

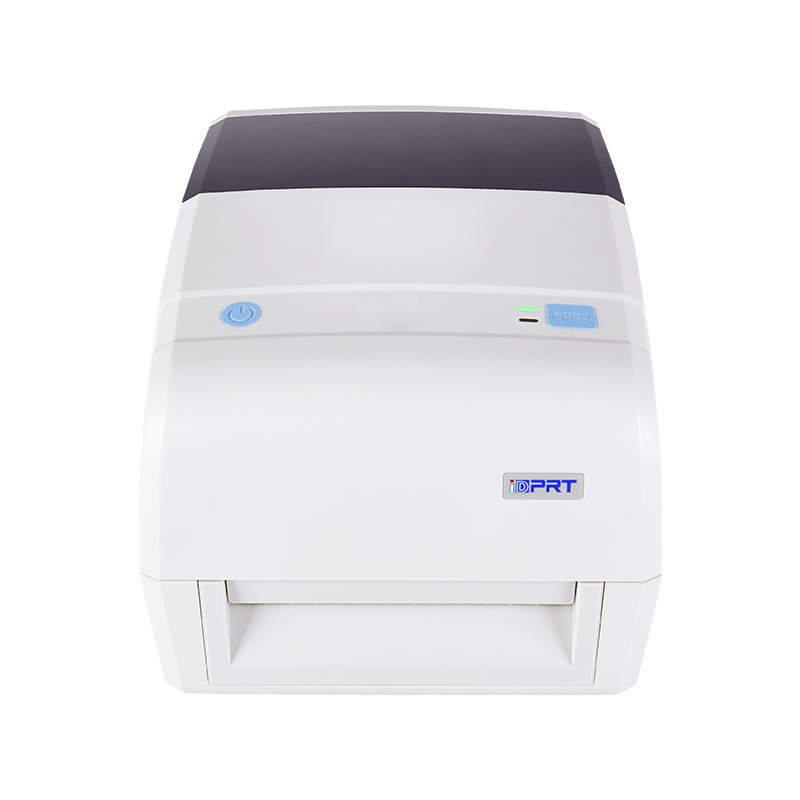

iDPRT - iT4S - Thermal Transfer Printer - 300M ribbon USB + Ethernet - Small industrial printing
iDPRT - iT4S - Thermal Transfer Printer - 300M ribbon USB + Ethernet - Small industrial printing
Regular price
R 3,400.00
Regular price
R 3,900.00
Sale price
R 3,400.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

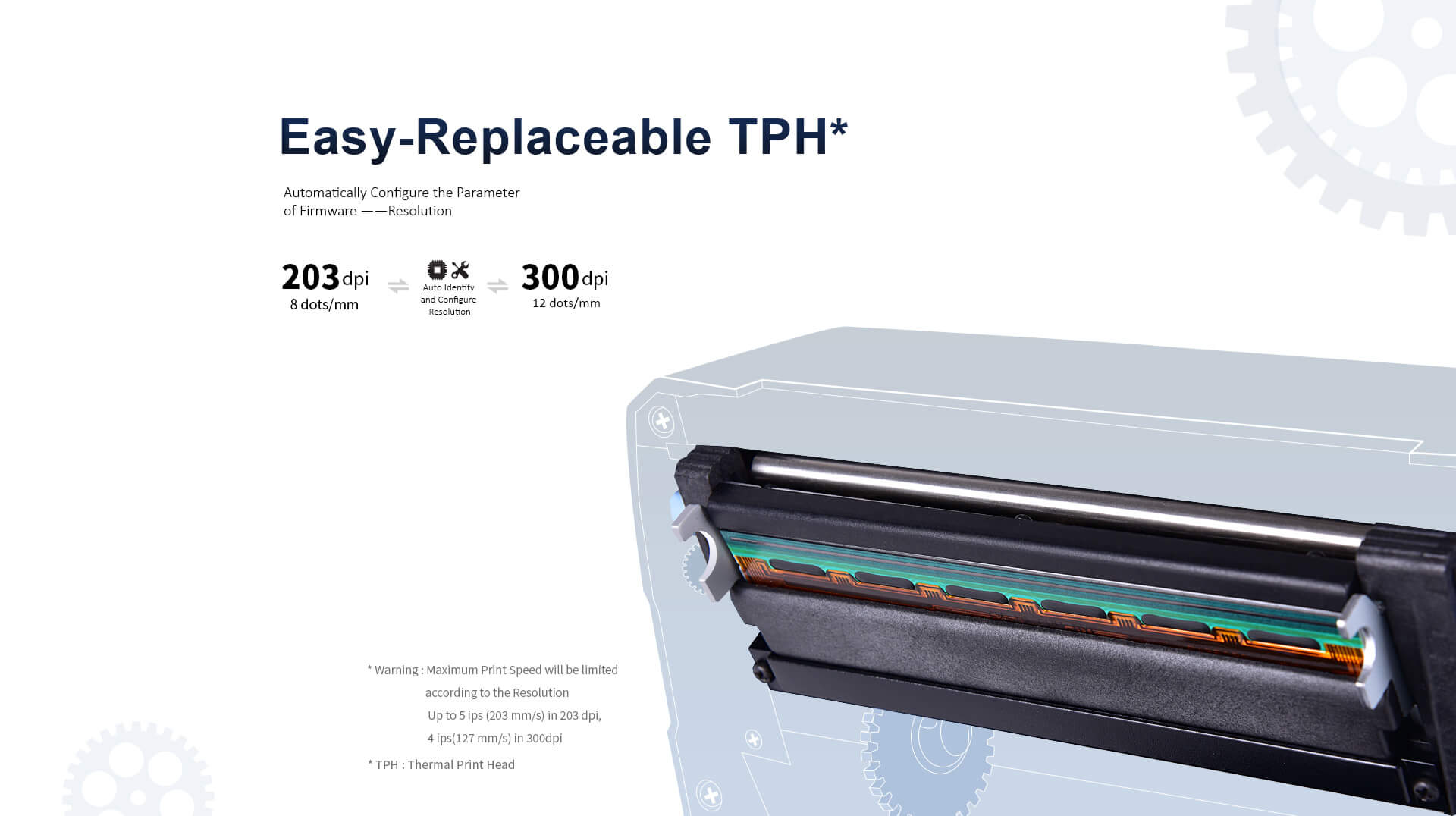

The modular design of print head makes the disassembly and assembly easy.
With the function to automatically identify the printer head with 203 dpi and 300 dpi and automatically configure the printer without PC settings.
With super large storage, DDR2 RAM 128 MB, Flash 8 GB.
With free label editing software Bartender to make the label editing convenient and easy.
With various media to meet the demand of wide area.
Refined white housing with printer mechanism, stable and durable.
| Resolution | 203dpi, 300dpi | |
|---|---|---|
| Printing method | Direct Thermal and Transfer Thermal | |
| Max. print speed | 6ips @ 203dpi, 4ips @ 300dpi | |
| Max. print width | 4.25"(108mm) @ 203dpi and 4.17"(106mm) @ 300dpi | |
| Max. print length | 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi | |
| Physical dimension(W x H x D) | 7.09"(180mm) × 11.54"(293mm) × 9.33"(237mm) | |
| Weight | 6.17lbs(2.8kg) | |
| Processor | 32-bit RISC CPU | |
| Memory | 256 MB Flash / 128 MB RAM | |

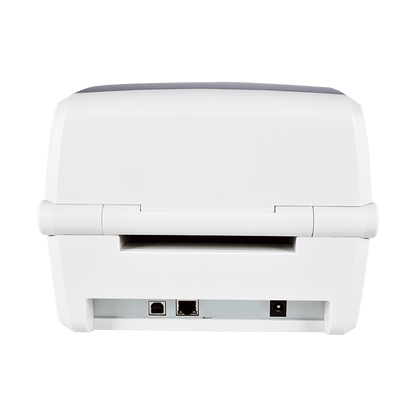

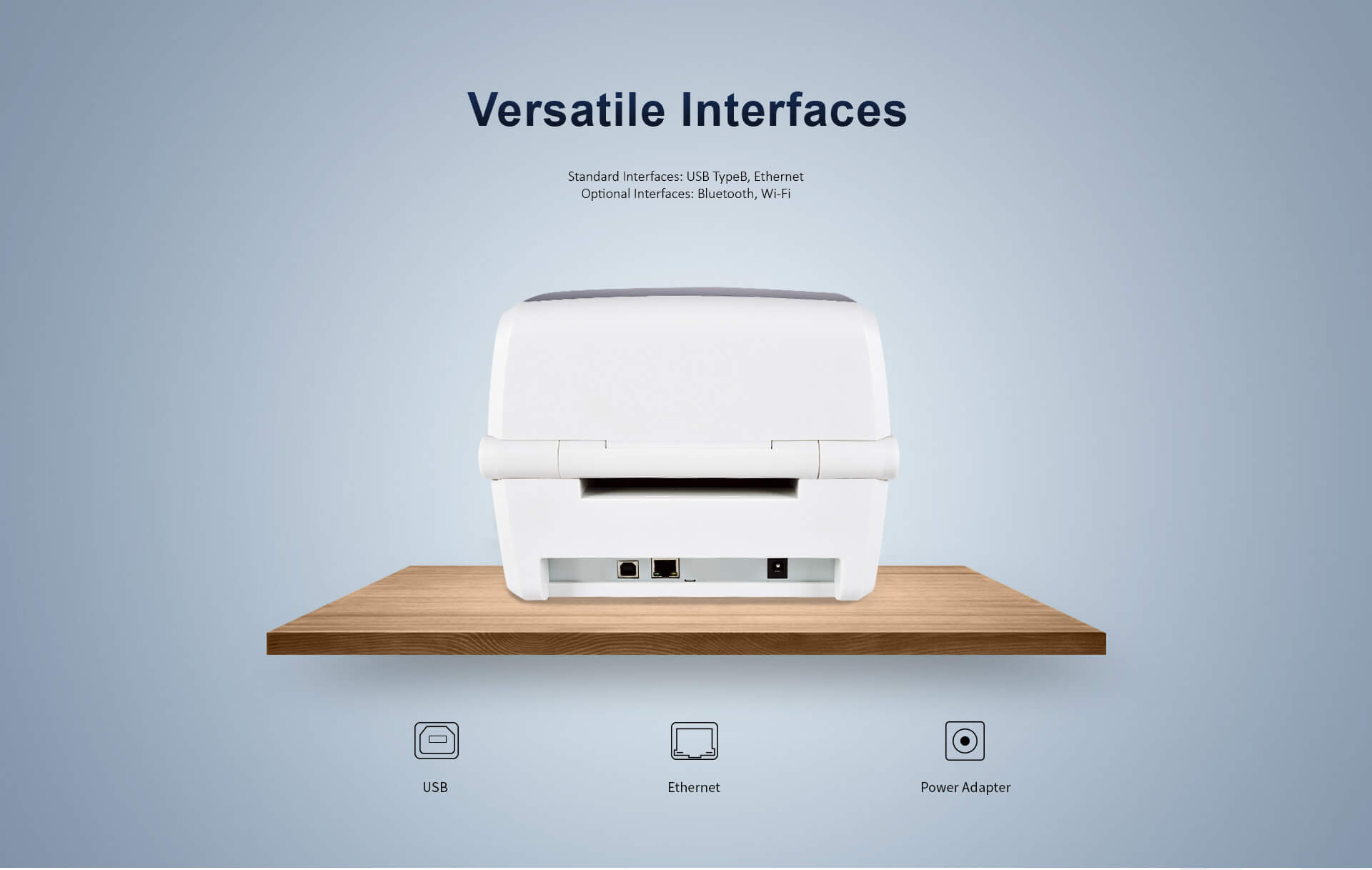

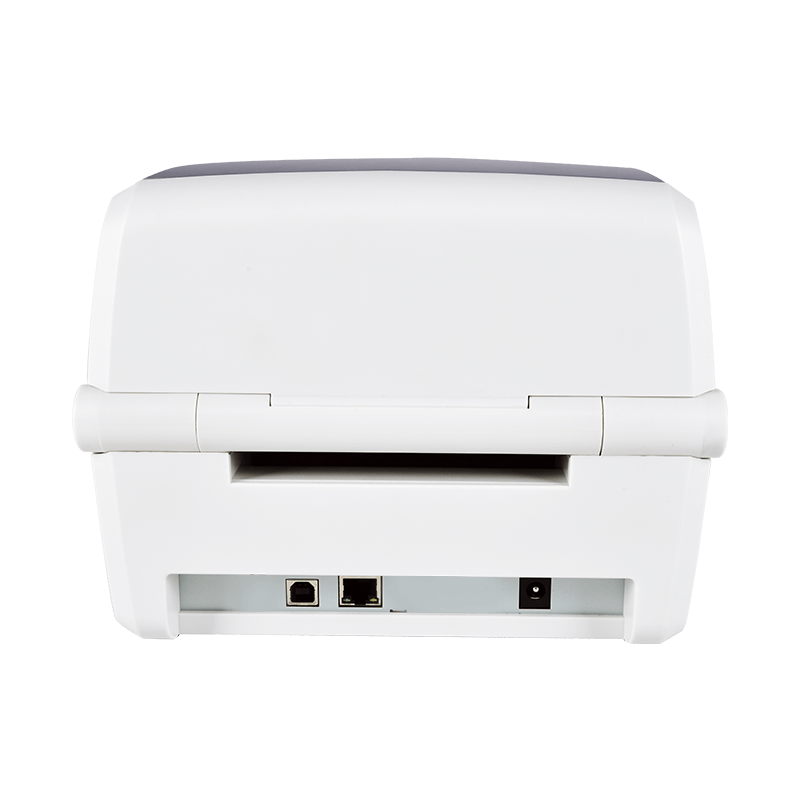

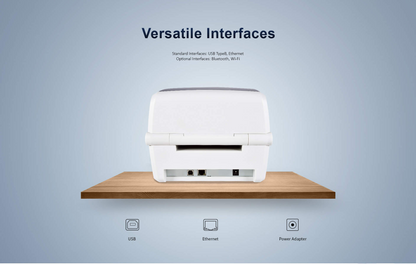

| Interface | Standard: USB-B and Ethernet 10/100Base T Optional: Wi-Fi802.11a/b/g/n, Bluetooth 5.2/LE |
|
| WiFi security encryption | WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP) | |
| WiFi security authentication | EAP-TLS, EAP-FAST, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1. EAP-MDS, LEAP | |
| Power | External universal switching power supply Input: AC 100~240V, 2.5A, 50~60 Hz Output: DC 24V 2.5A, 60W |
|
| User interface | 2 operation buttons(power,feed) 2 LEDs with 3 colors |
|
| Sensors | Gap transmissive sensor Black mark reflective sensor (position adjustable) Head open sensor Ribbon end sensor |
|
| Internal fonts | 8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0 |
|
| Graphic formats | PCX,BMP | |
| Bar code | 1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14 2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec |
|
| Font and barcode rotation | 0, 90, 180, 270 degree | |
| Printer Language | ZPL-II, TSPL, DPL, EPL2 | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch | |
| Media handling | Standard: Continuous, Tear-Off / Options: Peel-Off, Cut | |
| Media width | Min 1"(25.4mm) / Max 4.65"(118mm) | |
| Media thickness | 0.002"(0.06mm) to 0.010"(0.250mm) | |
| Media core diameter | 0.5"(12.7mm)/ 1"(25.4mm)/ 1.5"(38.1mm) | |
| Media max. roll diameter | 5.0"(127mm) | |
| Media length | Min.: Tear-Off 0.24"(10mm) @ 203dpi, 0.2"(8mm) @ 300dpi Min.: Peel-Off , Cutter 1.0"(25.4mm) Max.: 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi |
|
| Ribbon type | Wax, Wax/Resin, Resi | |

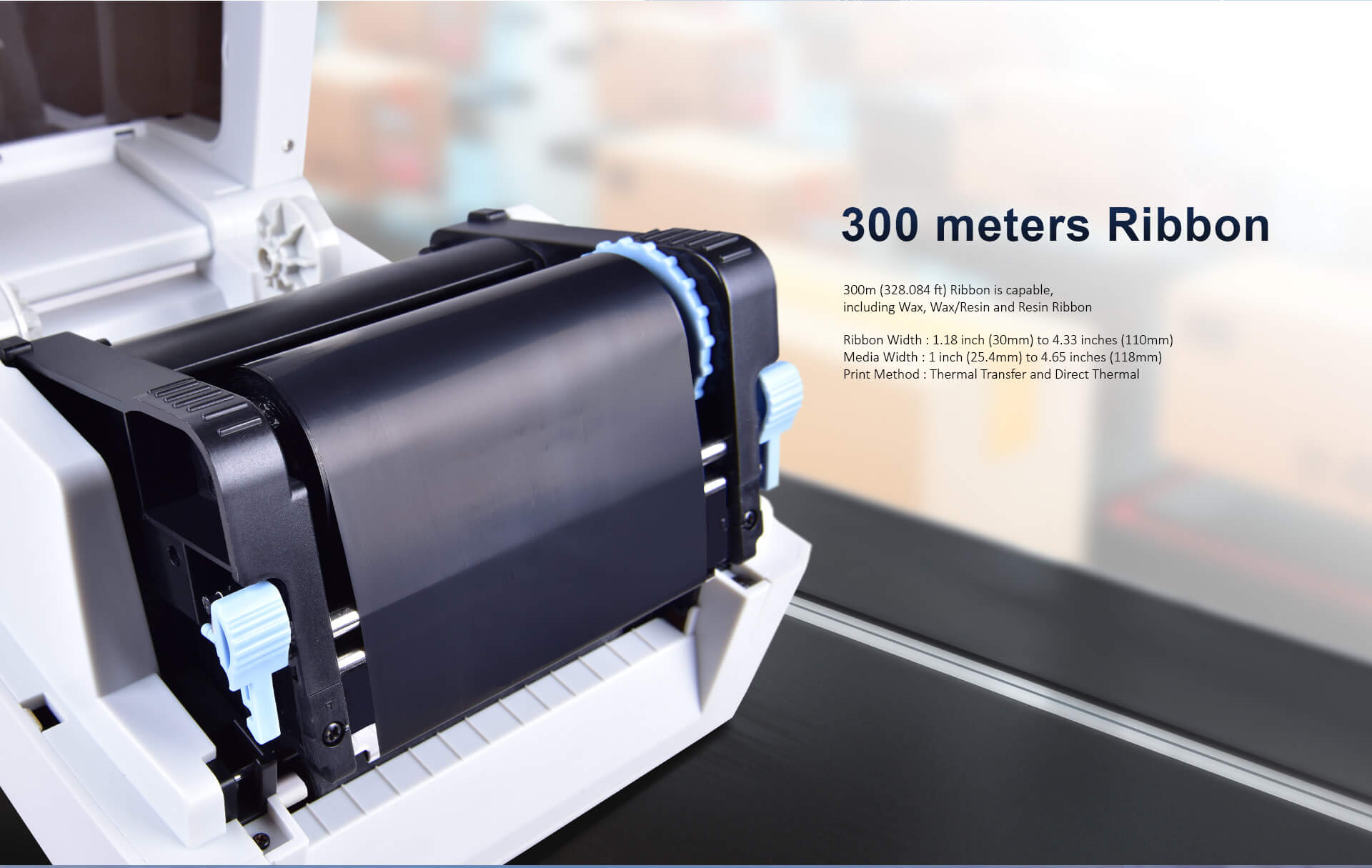

| Ribbon length | 984.3 ft(300m) | |
| Ribbon core diameter | 1.0"(25.4mm) | |
| Ribbon width | Min 1.18"(30mm) / Max 4.33"(110mm) | |
| Environment condition | Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing |
|
| Safety Certification | CCC, FCC, CE, CB, Energy Star | |
| Environmental concer | RoHS, WEEE | |
| Options | Wi-Fi802.11a/b/g/n/ac Bluetooth 5.2/LE Peel Guillotine cutter |
